MODULAR CONTAINERISED BATCH ASPHALT PLANTTransMix Series
The Parker TransMix range has been designed to fit in standard open top ISO shipping containers while still maintaining many of the StarBatch range features and capable of producing a wide range of high quality mixes.
The quick erect modular tower and all main sections of the plant are designed to be free standing with no tension or uplift to the slab bases and no holding down bolts required.
Features

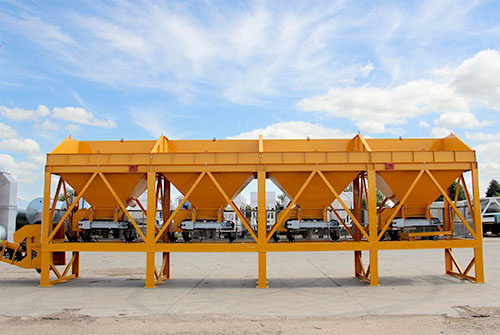

Aggregate Feed Unit, Belt Feeders & Collecting Conveyor
Compact, robust, modular 4 hopper cold feed unit with highly accurate AC variable speed inverter controlled direct drive motor/gear units.

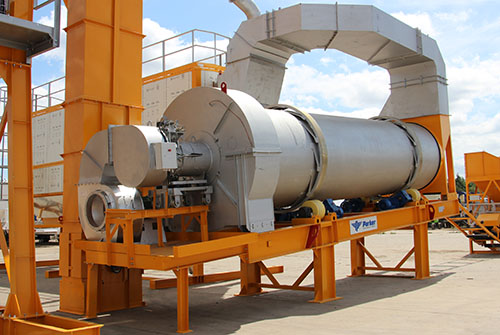

Aggregate Dryer
Easily transported aggregate dryer with advanced design of internal lifters optimizing thermal efficiency for maximum heat transfer. Choice of multi-fuel burners. Nylon support & thrust rollers reduce wear, vibration and noise.
Control System
The insulated and clad control cabin is supplied with a range of advanced control options from touchscreen to PC based, fully automatic systems and fully programmable recipe storage and archive facilities.
Mixing & Screening Tower
Quick erect, modular tower; heavy duty aggregate screen with-in a fully sealed dust housing.
High Efficiency Mixer
Twin shaft, direct gear/motor drive high efficiency paddle mixer. Hard wearing replaceable abrasive resistant liner plates, paddle arms and tips. Discharge to truck or mixed material storage facility.

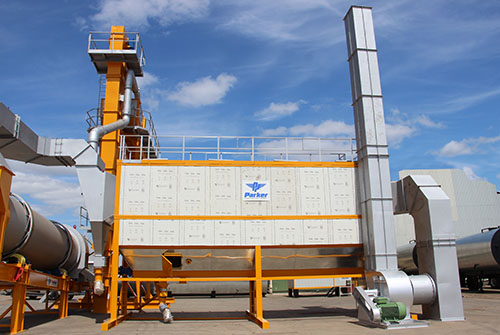

Dust Filter
Dependant on location the containerised StarBatch is available as standard with bag filter and fan unit for secondary dust collection achieving less than 20mg/m³.
Options
- Fully automatic multi-fuel burner
- Inclined skip type mixed material storage
- Reclaimed dust systems
- Imported filler silo
- Reclaimed asphalt feed system (RAP)
- SMA fibre and additive systems
Specifications
*Plant capacity is based on 150°C from mixer. Average moisture content of 3%, including 3% filler and 5% bitumen in the mix at sea level with 30˚C ambient temperature, 45 second weigh/mix cycle, 80 batches per/hr.
Download Brochures
TransMix 1000
TransMix 1500
TransMix 2000
TransMix 2300
